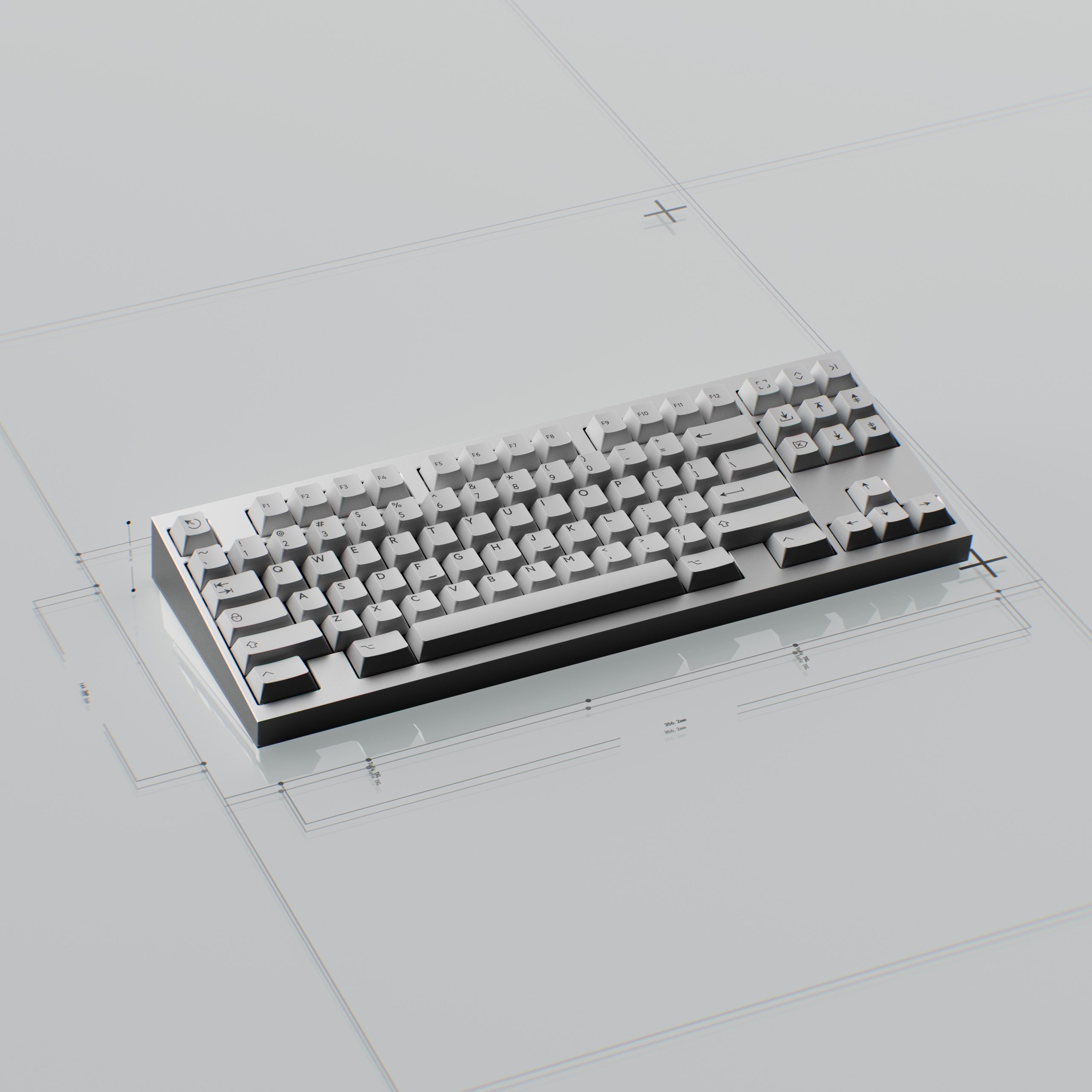

TOFU TKL

The TOFU series draws its design inspiration from the purity and versatility of its namesake. Its philosophy is one of minimalism, featuring clean, architectural lines reminiscent of a simple block of tofu. It is a design that strips away the superfluous, returning to the fundamental essence of a typing instrument.

As the latest evolution of this legacy, the Tofu TKL embraces this spirit of adaptability. Mirroring the culinary diversity of tofu, the TKL offers a choice of distinct case materials—Aluminum, Stainless Steel, and Copper. This allows each enthusiast to craft a keyboard that perfectly matches their personal preference for weight, sound, and feel, creating an experience that is uniquely their own.

Case Design

Craftsmanship & Finish
The Tofu TKL case is a testament to meticulous craftsmanship. Each unit undergoes an ultra-fine sandblasting process, followed by a premium anodization that imparts a silky-smooth, luxurious finish. The housing is precision-sculpted, reflecting a dedication to quality in every line.

Structural Integrity
Internally, the Tofu TKL carries forward the minimalist design heritage of the TOFU family while introducing a versatile dual-mounting system. This allows users to choose between a classic TOP Mount for a firm, responsive feel, or a PCB Gasket Mount for a softer, more flexible typing experience, catering to diverse preferences.

Visual Language
Visually, the Tofu TKL introduces a bold design language. The bottom case features an exposed rear accent, splitting the USB port face into two distinct sections. This innovative construction enables striking two-tone color combinations, both immediately captivating and enduringly timeless.

  Specs
  • Case material: Aluminum (anodized/e-coating)
  • Mounting style: Top Mount/PCB Silicone Gasket
  • PCB: 1.6mm, 4 options, solder/wired hotswap/Dual-mode hotswap/HE
  • Plate: Alu/Carbon fiber/PC Plate
  • Typing angle: 9 degree
  • Cover plate material options: Stainless Steel / Brass
  • Designer: Wei
  What's included
  • Top and bottom case x1
  • Weight bar x2
  • Silicone gasket x1 set
  • Rubber feet x1 set
  • PCB x1
  • Daughterboard x1
  • Foam kit x1 set
  • Plate x1
Mounting Style

PCB Gasket mount

Engineered for Softness:
Following a similar support distribution as the TOP Mount, the PCB Gasket is designed to provide a maximally soft, bouncy, and flexible typing experience.


Plateless Build Potential:
Combine this mount with the solderable PCB to assemble your board without a plate. This "plateless" configuration is the ultimate choice for achieving maximum flex and a unique, deep sound profile.

Top mount

Optimized TOP Mount Structure:
To minimize resonance and hollowness, the mounting points for the TOP structure are strategically placed to avoid the spacebar area. This results in a more uniform and satisfying sound signature.

Integrated Force Break System:
The design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound.

Exploded View
Top Case
Bottom Case
Weight Bar

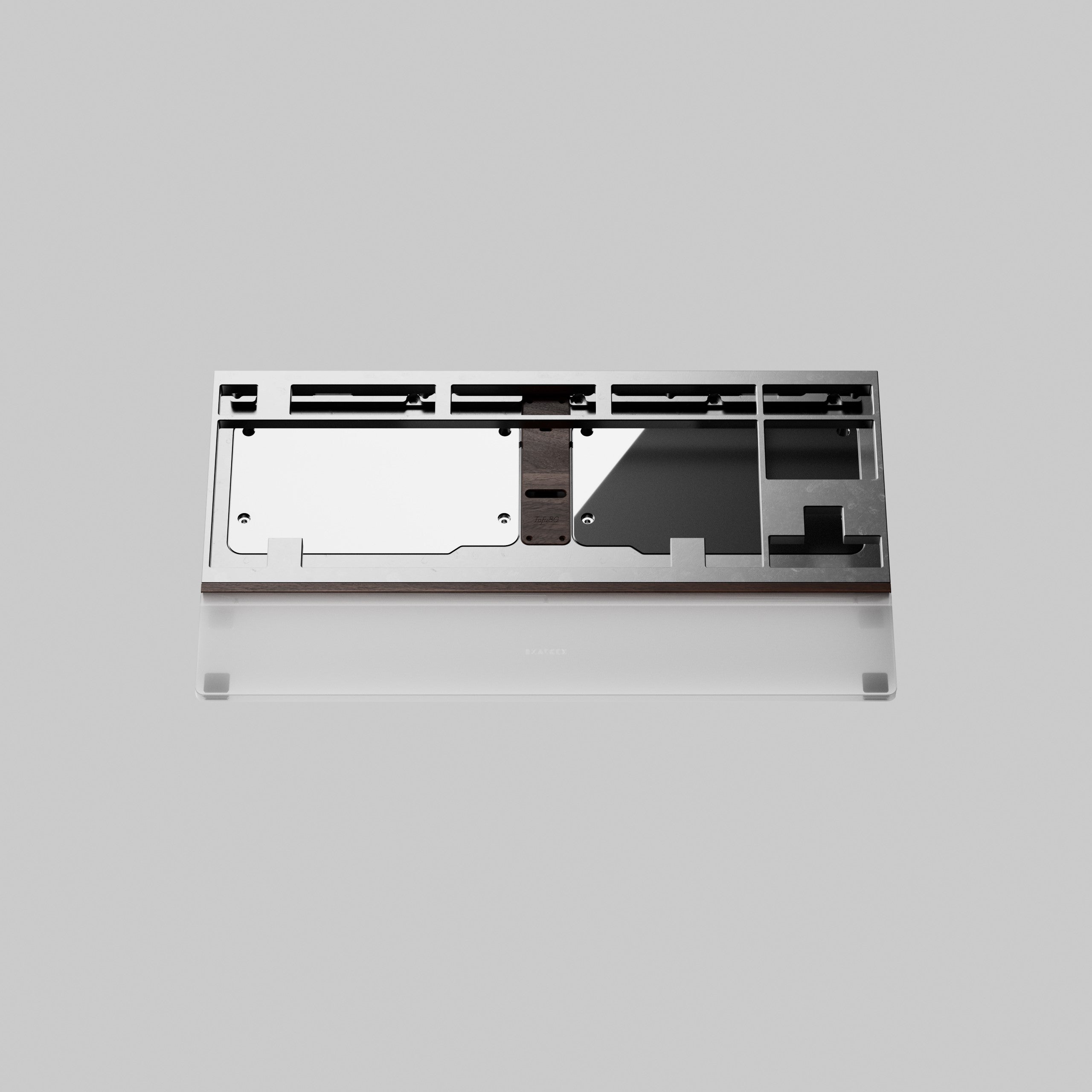

Wrist Rest & Wood Accent
PCB Options

Wired PCB (Solder & Hot-Swap)

Dive into deep customization with support for AVA, VIAL, and VIA. The solder version also allows for a unique plateless build option.

  • 1.6mm thickness
  • FR4 material
  • Solder version/ Hotswap version
  • Magnetic connector PCB
  • Firmware
  • Json file



Dual-Mode PCB

Experience the freedom of wireless with our first-ever dual-mode board powered by ZMK. Its ultra-low power consumption delivers an incredible 6+ months of battery life from a single 1000mAh battery.

  • 1.6mm thickness
  • FR4 material
  • Solder version/ Hotswap version
  • Magnetic connector PCB
  • Firmware
  • Json file

HE (Magnetic) PCB

Engineered for victory. We've partnered with NNKS to create a next-gen Hall Effect PCB focused on what matters most: ultra-low latency.

  • New Daisy-Chain Architecture: Reduces input delay.
  • Stable 0.01mm Resolution: Precision where it counts.
  • Web-Based Configurator: Easy, on-the-fly adjustments.
  • Continuous Firmware Updates: Always stay ahead of the curve.
PCB version Thickness Material Interface Type RGB Firmware support Configurator web page Compatible switches

Wired solder PCB

1.6mm

FR4

POGO pins

No

VIA/VIAL

VIAL

cherry MX switches and MX-style clones

Wired hotswap PCB

1.6mm

FR4

POGO pins

No

VIA/VIAL

VIAL

cherry MX switches and MX-style clones

Dual hotswap PCB

1.6mm

FR4

POGO pins

No

ZMK

ZMK

cherry MX switches and MX-style clones

Wired HE PCB

1.6mm

FR4

JST cable

Yes

Self-developed

          Tofix.cc

most magnetic switches
Layout Support

Wired PCB and Dual-mode PCB layout

WK Case

WKL Case

HE（Magnetic） PCB layout

Only works for WK Case

Dimensions

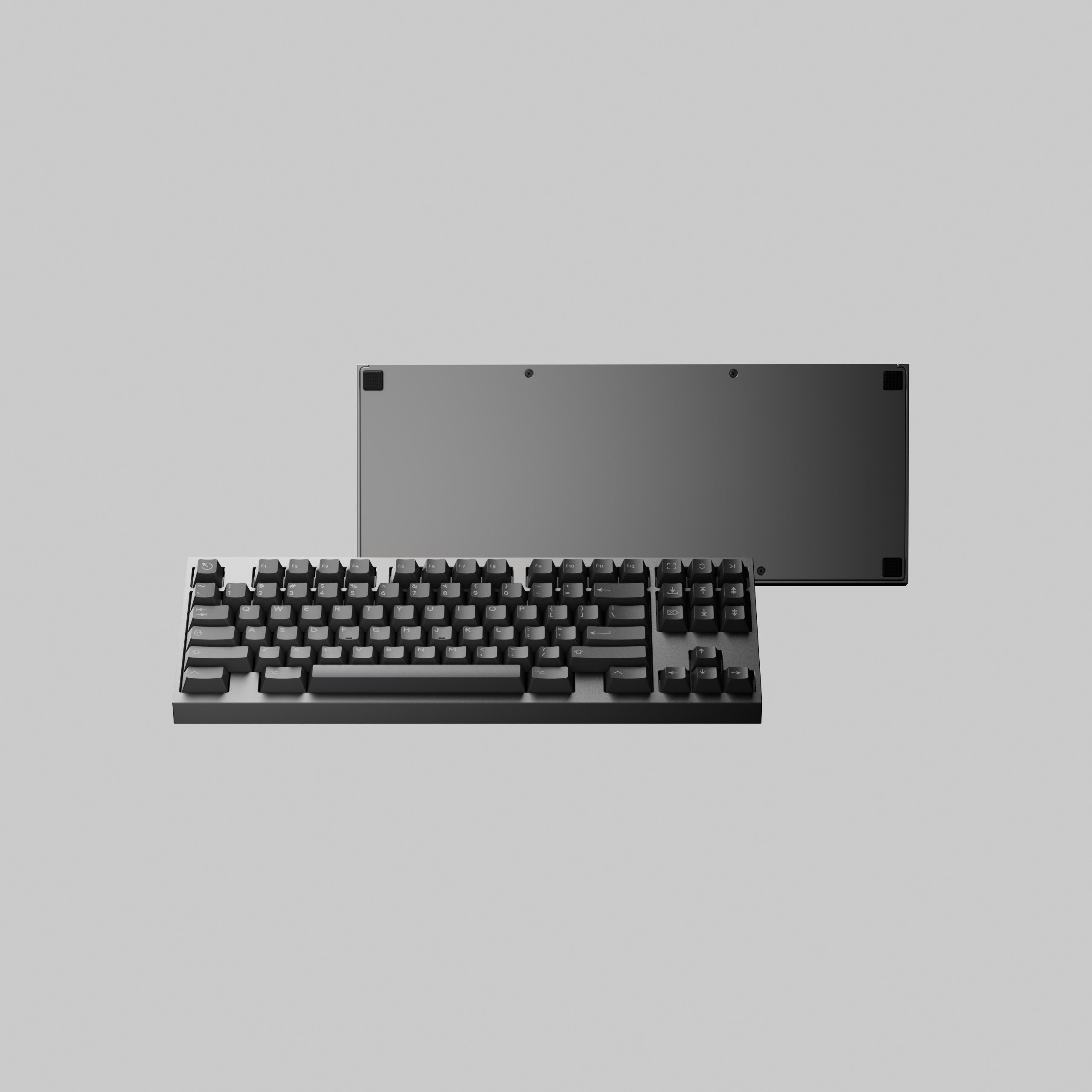

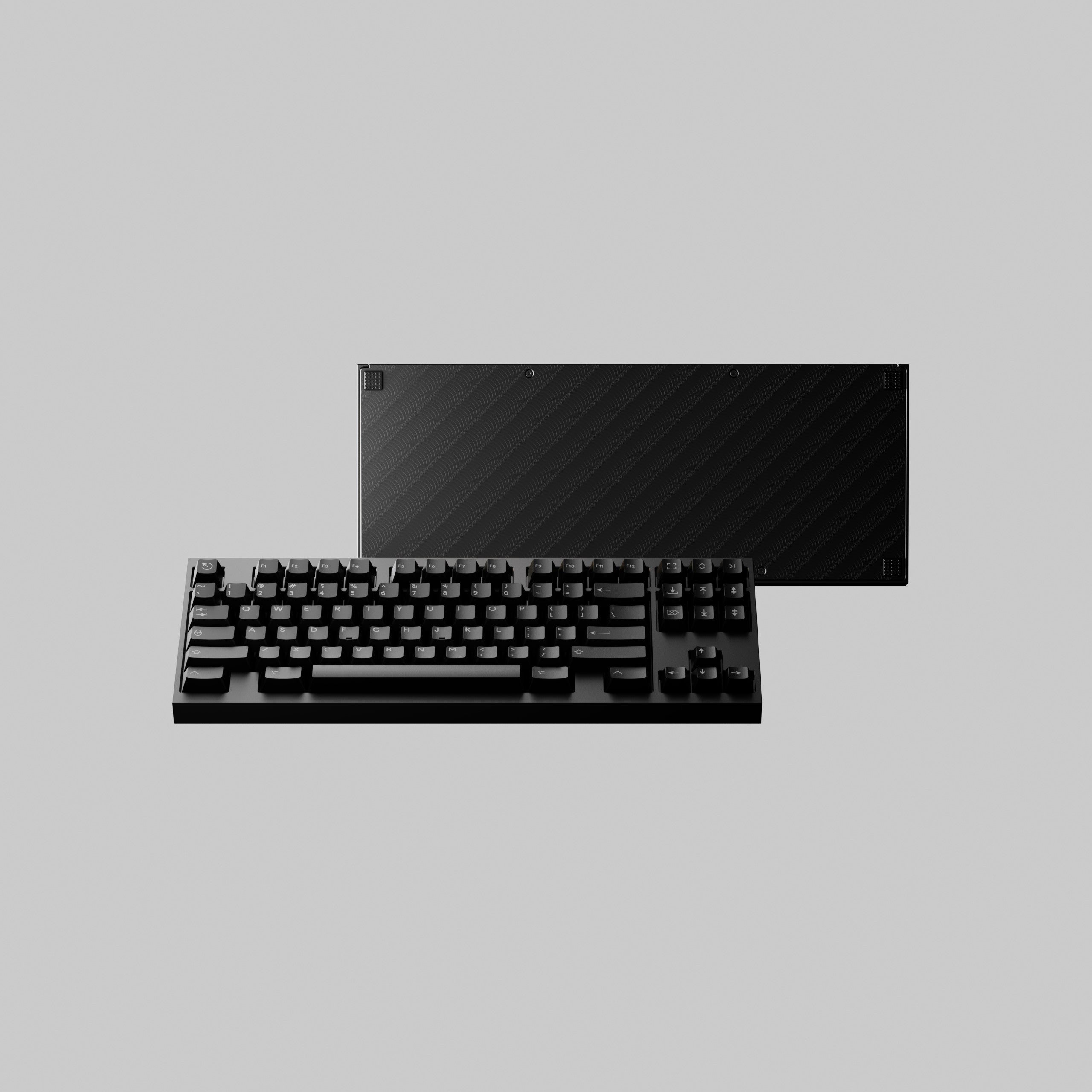

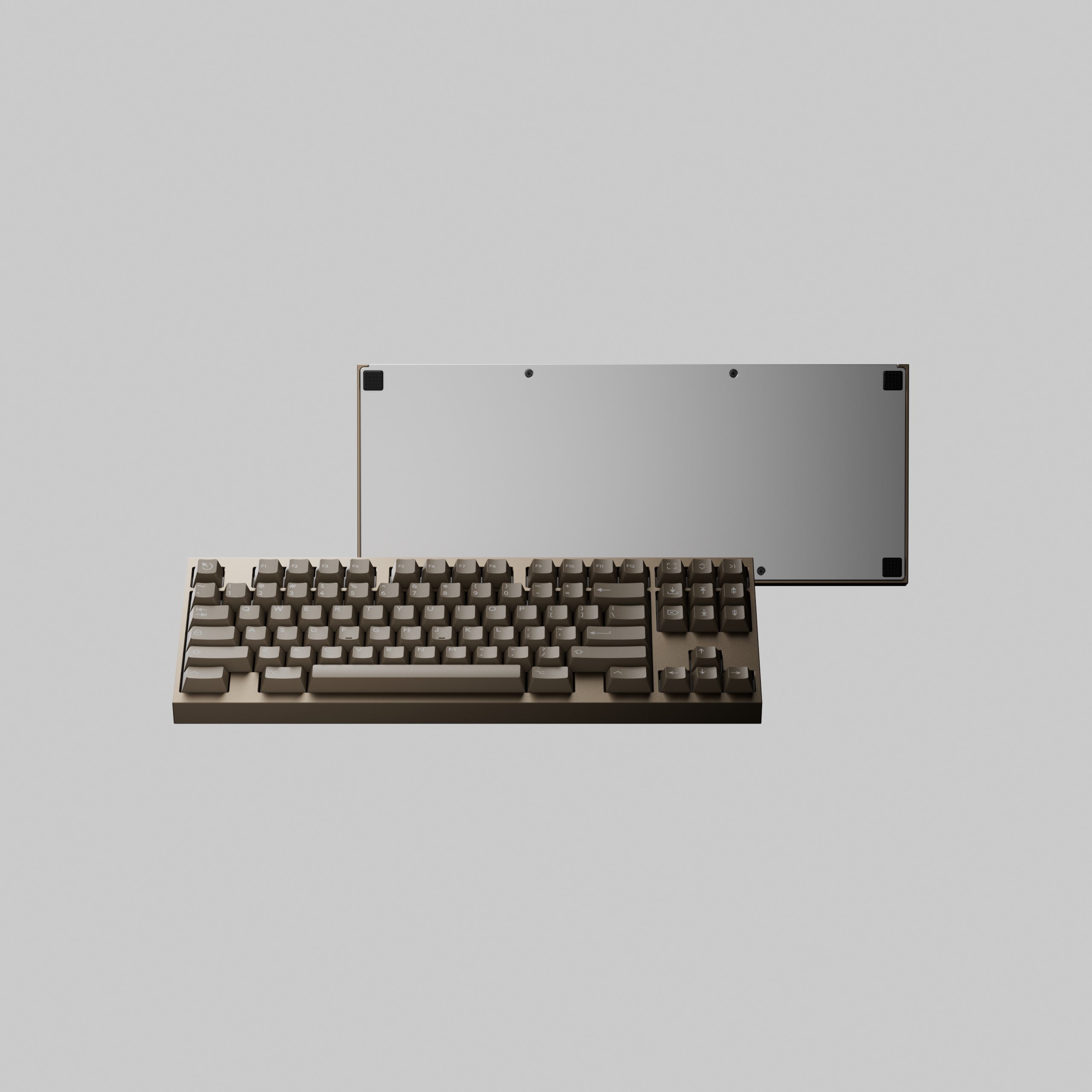

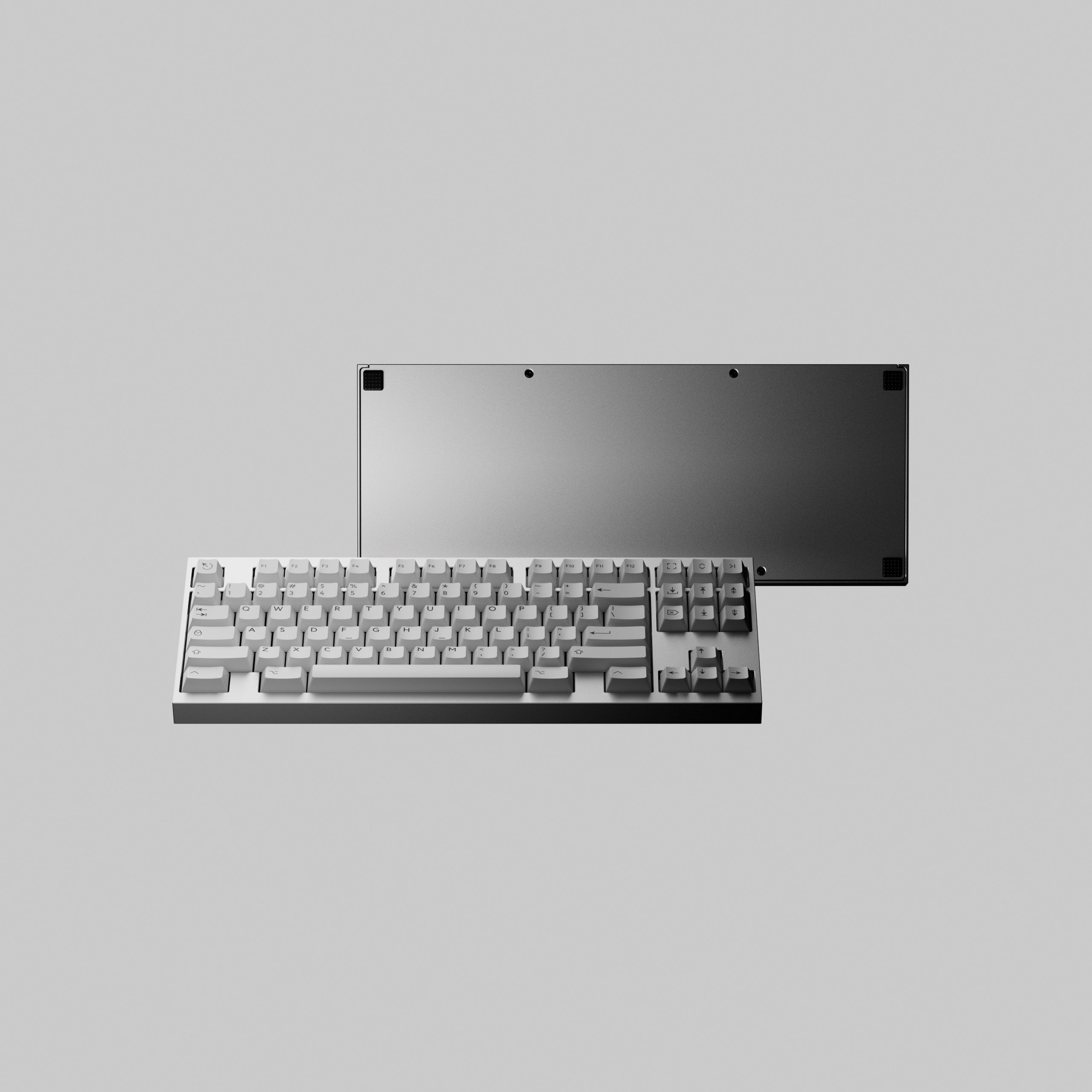

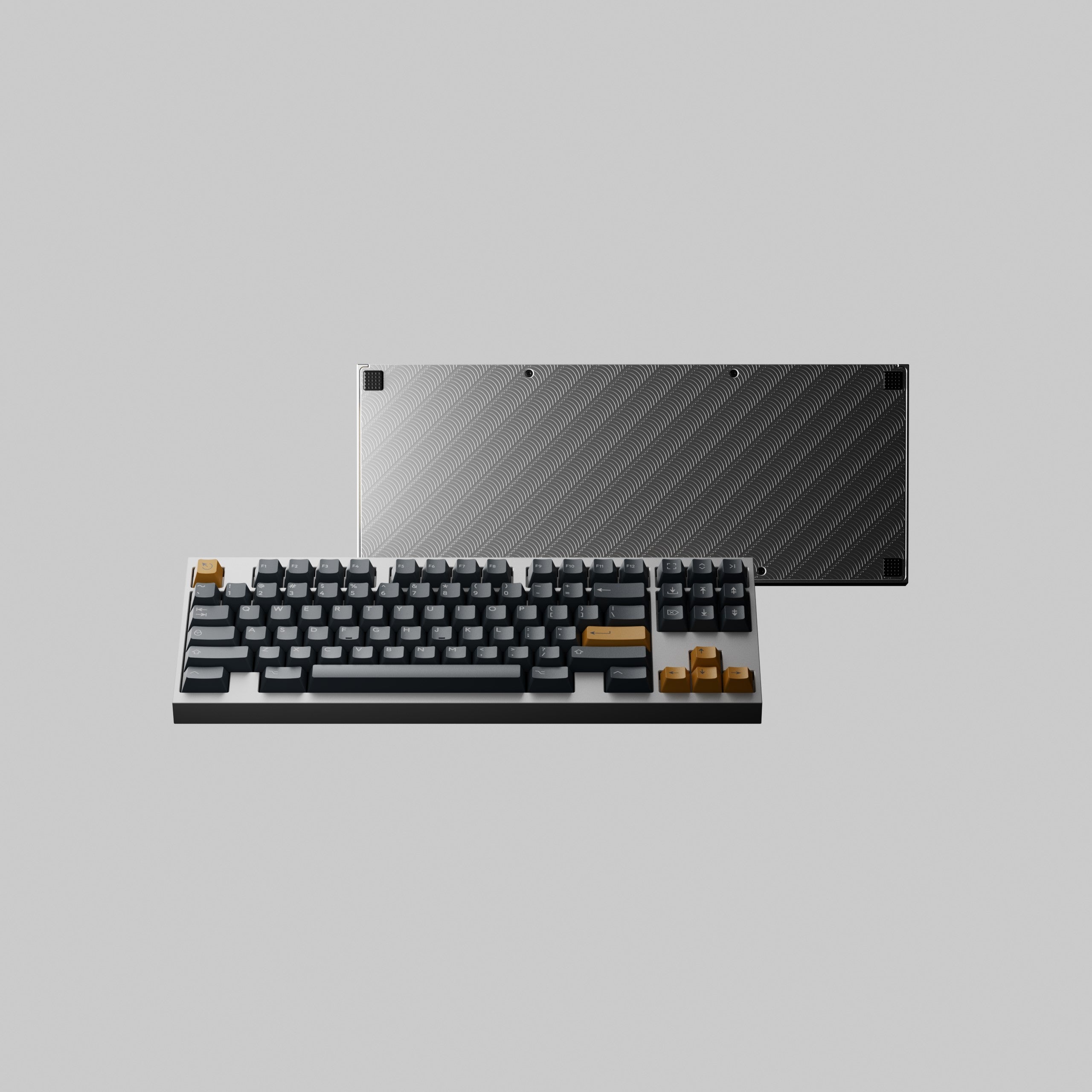

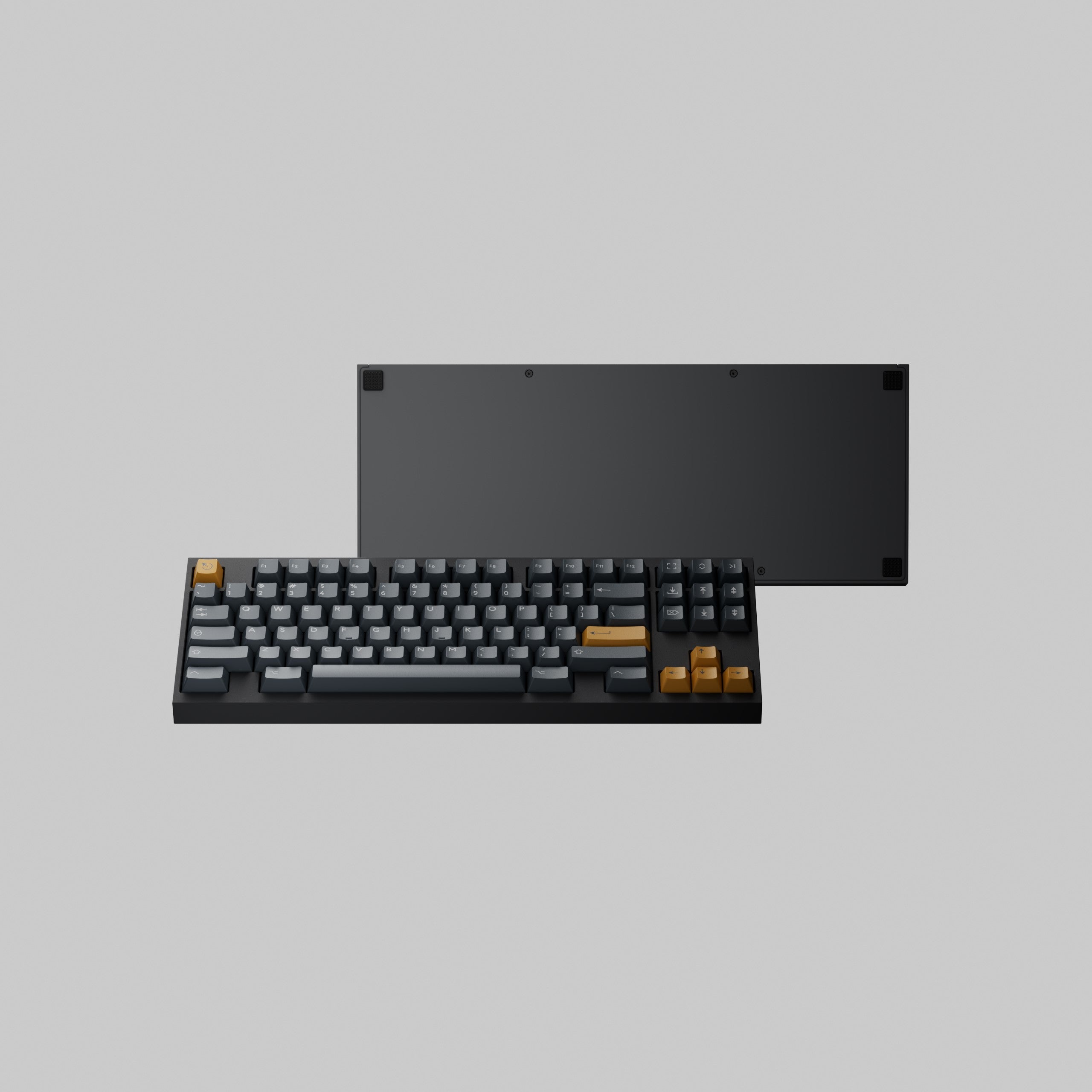

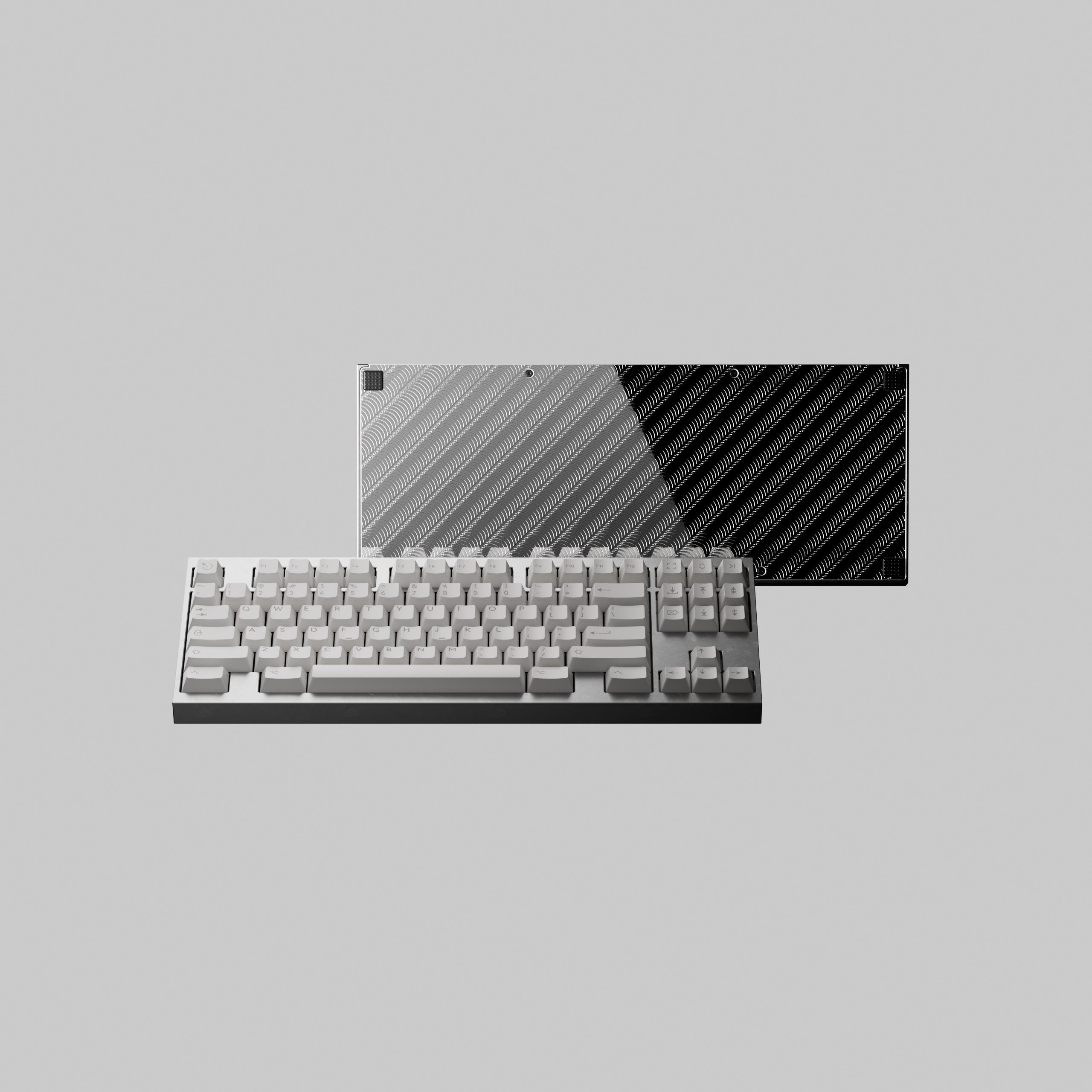

Render Pictures

FAQs

Can I use KBD8X MKIII or VENOM HE PCBs with this board?

No, it only supports the proprietary PCB designed specifically for the TOFU case.

What is the latency for the wired and dual-mode PCBs? Is the dual-mode latency significant?

The latency is 1.25ms for MX-style switches and 0.125ms for magnetic switches. As expected, the latency in dual-mode (wireless) will be slightly higher than in single-mode (wired).

Can I request a different color after making a purchase?

This pre-order is for our standard color options. However, we also offer a paid upgrade service for custom colors in collaboration with KEZEWA.

Will a half-plate made of steel be available in the future?

Yes, that's possible.
